High Speed 5 Axis CNC Vertical Machining Center VMC 1060
PRODUCT DESCRIPTION
The 5 Axis CNC Vertical Machining Center VMC 1060 is one of the VMC series products. Just like other vmc series machines, it is also equipped with a vibration absorbent spindle nose which can avoid accuracy problems caused by tool vibration, such as affecting the surface accuracy of the workpiece. The machine is equipped with a 600 x 1300 worktable. For processing some large or complex parts, the larger size of the worktable is more efficient. The spindle seed range of this machine is 10000 rpm, the ultra high speed ensures the efficiency of processing. There will be no backlash and hysteresis problems because this machine is using the high power axial servomotor.
The spindle is made of highly rigid material, with excellent anti-vibration performance, which can effectively absorb vibration to ensure the accuracy of the workpiece. The high rotation of 10000RPM also improves the efficiency of processing to a large extent and saves the processing time. This machine also equips three axis precision ball screw which can provides the efficiency of high speed movement and precise position control. The machine is also equipped with excellent linear guide rail, rigidity and precision are very high, can ensure the machining accuracy.
Main Technical Parameters
| ITEM | MODELS | VMC1060 |
| WORKTABLE (WIDTH*LENGTH) | mm | 600*1300 |
| DISTANCE BETWEEN T SLOTS | mm | 5-18*120/5-18*120 |
| MAX LOAD BEARING OF WORKTABLE | kg | 900 |
| X/Y/Z AXIS TRAVEL | mm | 1000/600/600 |
| 5-AXIS | / | |
| DISTANCE FROM SPINDLE NOSE TOWORKBENCH | mm | 180-780/70-670 |
| SPINDLE HOLE TAPER | | 180-780/70-670 |
| SPINDLE SPEED RANGE | r/min | 10000 |
| TRANSMISSION OF SPINDLE BOX |
BELT/DIRECT |
BELT/DIRECT |
| SPINDLE MOTOR POWER | kW | 11 |
| X/Y/Z RAPID FEED SPEED | m/min | 24*24*18 |
| MAX CUTTING FEED SPEED | mm/min | 10000 |
| TOOLS MAGAZINE CAPACITY | pcs | 24 |
| FULL TOOLS MAX TOOL DIAMETER | mm | 100 |
| MAX.TOOLS ALLOWABLE WEIGHT | kg | 7 |
| MAX.TOOLS ALLOWABLE LENGTH | mm | 305 |
| X/Y/Z POSITION ACCURACY | mm | 0.008 |
| X/Y/Z RE-POSITION ACCURACY | mm | 0.005 |
| MACHINE DIMENSION | mm | 3080*2370*2540 |
| MACHINE WEIGHT | kg | 7800 |
Standard Configuration for VMC Series
1. Full Cover shield
2. Self-lubrication system
3. Working lights
4. Warning lights
5. Working condition warning lights
6. Self-powered electrical shutoff system
7. Clean air gun/ Water Tank / Transformer
8. Spindle air curtain and dust control system
9. 10000 RPM spindle
10.Worktable cleannig water gun
Optional Configuration for VMC Series
1. 24 disc manipulator tool magazine
2. Crawler chips remover
3. NC rotary table (4 Axis)
4. CTS
5. Tool detection system
6,. AJO
7. 12000 & 15000 RPM Direct connection spindle
8. Oil mist purifier

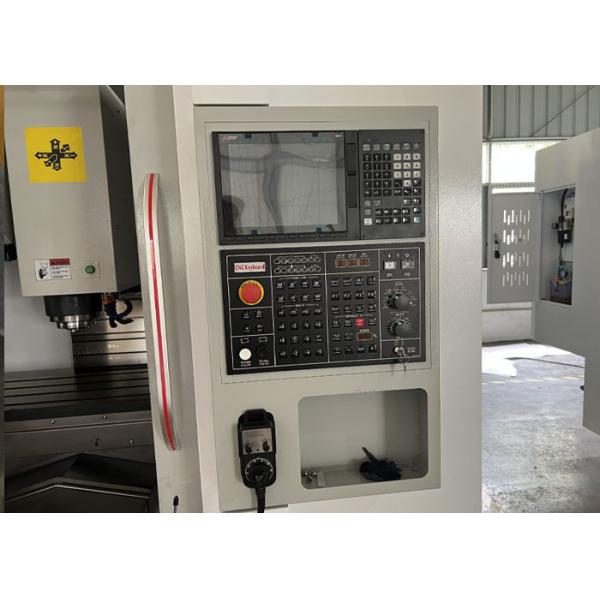

Product Details
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
