Product Description:

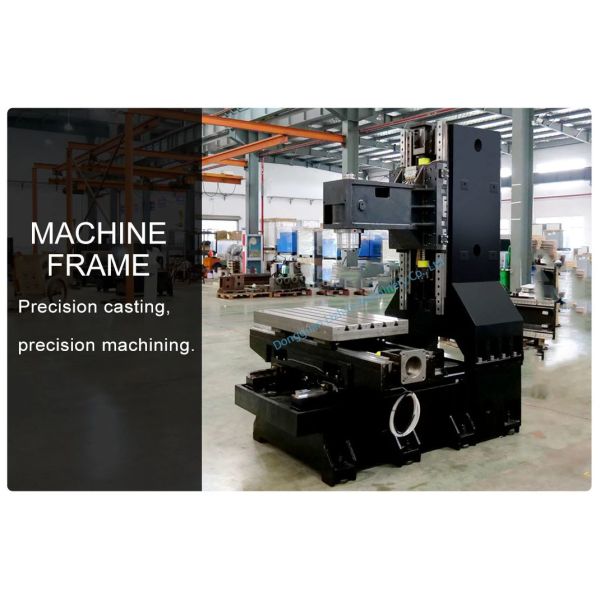

The VMC- 1270 IS a high performance vertical machining center, it has the characteristics of high speed, high performance, high rigidity and high stability. All castings of this machine are secondary tempered to provide excellent rigidity and stability to the machine, which can make this machine maintain high speed and high stability in the process of processing. The three-axis adopts high-precision ball screw, combined with precision nut pre-compression and tail end pre-tension device, to ensure that the machine backlash and thermal deformation are kept at a low value for a long time.
This machine can be used in automotive, manufacturing, sewing machine, motor and instrument industries for milling, drilling, counterboring, boring, tapping and countersinking valve-type, cam, molds and plate/disk type workpieces. It is especially suitable for all sorts of complex 2D/3D convex/concave molds and complex ID/OD surfaces. They can be used for medium/small batch multi-work production or be linked into an auto line for large batch production.
Technical Parameter:
Item |
Specifications | MODELS→ | VMC1270 |
Travel Range | X/Y/Z Axis Travel | mm | 1200/700/700 |
| Distance From Spindle Nose To worktable | mm | 150-750 |
Worktable | Worktable (WidthxLength) | mm | 1360x600 |
| Max Load Bearing Of Worktable | kg | 900 |
| T-Slot(number of SlotxSlot WidthxPitch) | mm | 518x152.5 |
Spindle | Spindle Hole Taper | type | BT50 |
| Spindle Speed Range | r/min | 8000/10000 |
Feedrate | X/Y/Z Rapid Feed Speed | m/min | 20/20/20 |
| Max Cutting Feed Speed | mm/min | 1-8000 |
Accuracy | X/Y/Z Position Accuracy | mm | 0.005 |
| X/Y/Z Re-Position Accuracy | mm | 0.003 |
| Machine Dimension | Machine Dimension | mm | 3680X2780X3100 |
| Machine Weight | kg | 8000 |
Picture Details:
Packing and Shipping:
Packaging and shipping for CNC Vertical Machining Center:
The crate will be covered with a waterproof plastic sheet
The crate will be secured with metal straps and palletized for shipping.
The package will be shipped via a reliable carrier.
The CNC Vertical Machining Center will be securely packed in a wooden crate.
FAQ:
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
